| 起源の場所: | 広東中国 |
|---|---|
| ブランド名: | Texin |
| Minimum Order Quantity: | 1 |
| 価格: | 交渉可能 |
| Packaging Details: | Durable box |
| 受渡し時間: | 5～7営業日 |
| 支払条件: | TT ustd wechat ペイパル |
| 供給の能力: | 1000000/per月 |
| ワット数: | 100W | 周波数範囲: | 2000～7200MHz |
|---|---|---|---|
| 関数: | 2000-7200mhzの広いカバレッジ | 供給電圧: | 28 v |
| 得: | 50dbm | 保証: | 1年 |
| 応用: | 無線通信、レーダー、試験装置 | コネクタ: | N型 |
| ハイライト: | 100W broadband power amplifier module,300-2700MHz PA power amplifier,government project power amplifier |
||

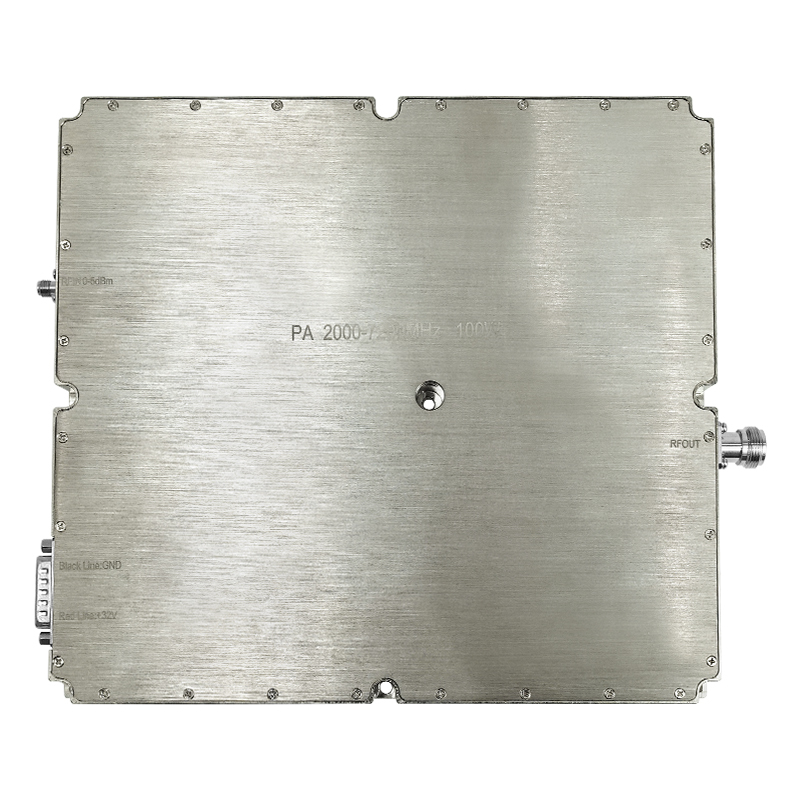

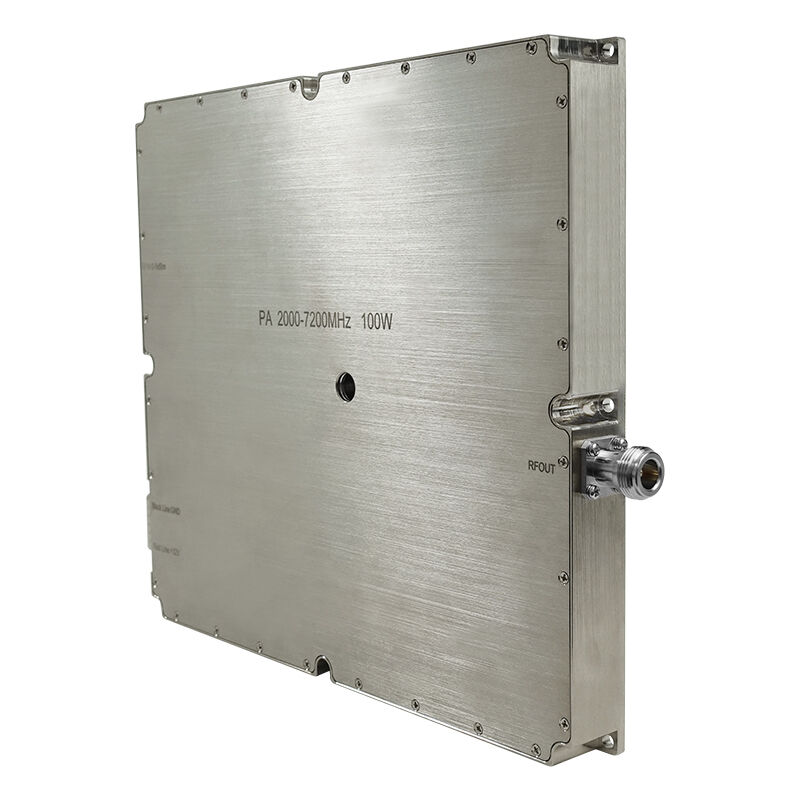

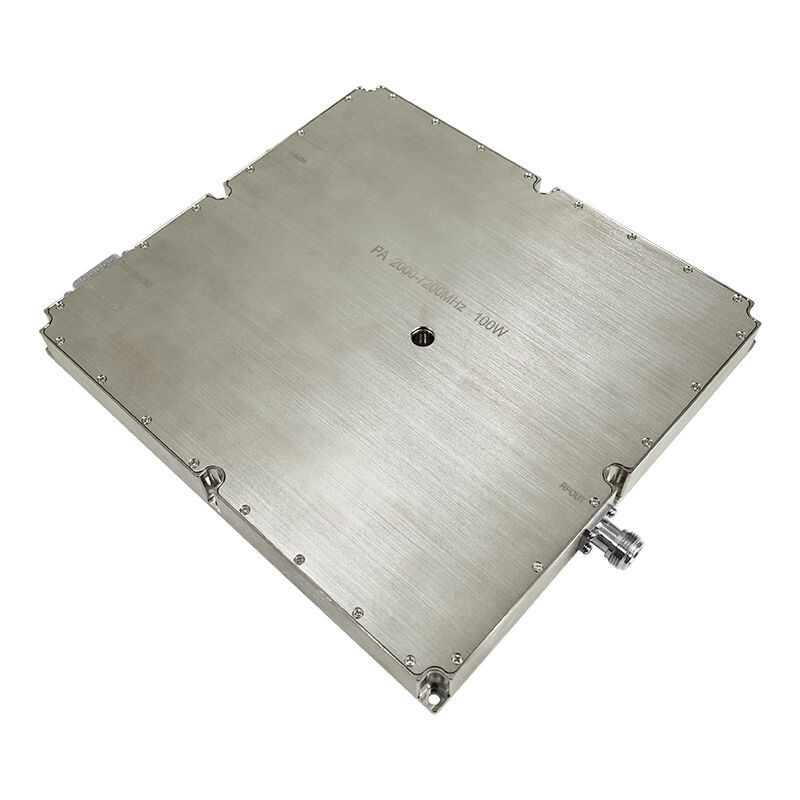

The high-power 100W 2000-7000MHz amplifier is an advanced, wide-bandwidth security device designed to counter illegal low-altitude drones. Manufactured in Guangdong, China, this power amplifier features 5dBm input power and a broad frequency range of 2000MHz to 7000MHz, making it ideal for various applications including drone countermeasures systems, wireless communications, radar systems, and testing equipment.
With 50-ohm output impedance for optimal signal transmission and minimal loss, this amplifier provides reliable performance in critical frequency bands. Texin operates its own factory, enabling customization of existing products and development of new solutions based on customer requirements.
| Description | Symbol | Min | Typ | Max | Unit | Remark |
|---|---|---|---|---|---|---|
| Operating Frequency | BW | 2000 | 7200 | MHz | ||
| Input Power | Pin | 0 | dBm | |||
| Output Power CW | Psat | 50 | 50.5 | 52 | dBm | Continuous Wave |
| Power Gain | Gp | 50.5 | dBm | @ Pin=0 dBm | ||
| Power Gain Flatness | △Gp | ±1.5 | dB | @ Pin=0 dBm | ||
| Input Return Loss | S11 | -15 | dB | |||
| Operating Voltage | Vdc | 28 | 28 | 36 | V | |
| Current Consumption | A | 15 | 18 | A | @ Pout=100~160W | |
| RF Connector Input | SMA, Female | |||||
| RF Connector Output | SMA, Female | |||||
| Max Input Power | PinMax | ≤10 dBm | ||||
| Interface | Pin | Definition |
|---|---|---|
| VDD | A2 | 28Vdc |
| GND | A1 | Ground |
| Enable | 1 | 5V~Vdd:ON 0V:OFF |
Note: Overall dimensions are for reference only. Size can be adjusted according to customer requirements. Input, output, and power supply interface positions can be modified based on actual needs.
