| 起源の場所: | 広東中国 |
|---|---|
| ブランド名: | Texin |
| モデル番号: | TX-CD100W |
| Minimum Order Quantity: | 1 |
| 価格: | 交渉可能 |
| Packaging Details: | Durable box |
| 受渡し時間: | 5～7営業日 |
| 支払条件: | TT ustd wechat ペイパル |
| 供給の能力: | 1000000/per月 |
| タイプ: | 広帯域電力増幅器 | 出力インピーダンス: | 50オーム |
|---|---|---|---|
| 得: | 50dbm | 周波数範囲: | 0.1GHz～6.2GHz |
| 供給電圧: | 28 v | サイズ: | 250*150*25mm |
| 周波数範囲: | 1000MHz～6200MHz | 保証: | 1年 |
| ハイライト: | FPV drone power amplifier,100W broadband power amplifier,security drone amplifier 6000MHz |
||

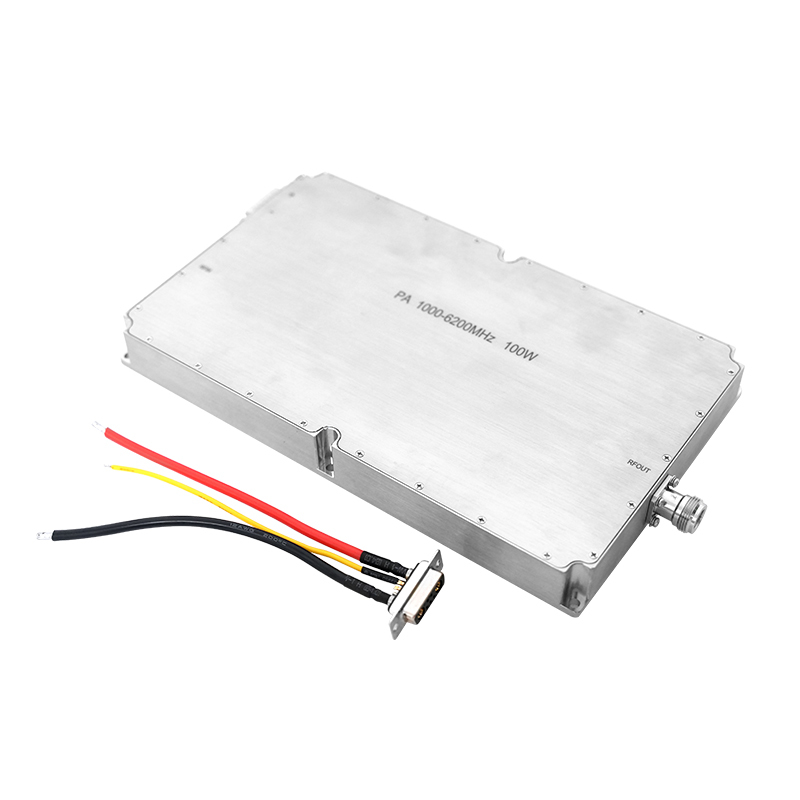

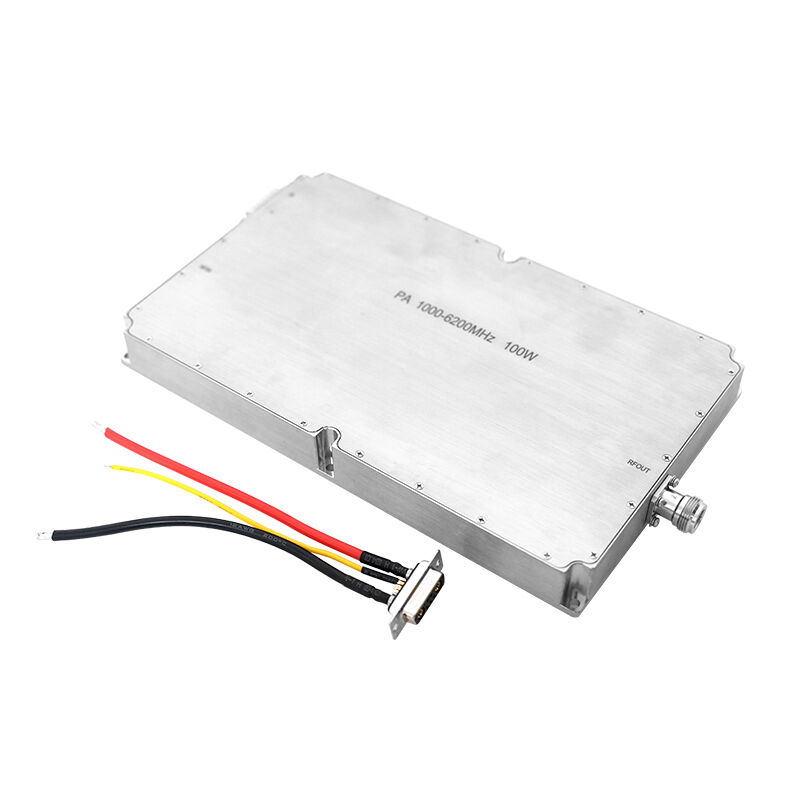

This broadband power amplifier is a high-performance RF power amplifier designed to meet the demanding requirements of modern wireless communications, radar, and drone countermeasures applications. Operating efficiently across a frequency range of 1000MHz to 6200MHz, this power amplifier module delivers exceptional power and gain, making it ideal for a wide range of RF amplification needs.
The amplifier features robust operation across a wide temperature range from -40°C to +65°C, ensuring reliable performance in various environmental conditions. With a 100W wattage rating and 50 dB gain, it provides substantial output power for enhanced signal strength and extended communication range while preserving signal integrity.
| No. | Item | Data | Unit |
|---|---|---|---|
| 1 | Frequency | 1000-6200 | MHz |
| 2 | Test voltage | 28-32 | V |
| 3 | Current | 9 | A |
| 4 | Output | 100 | W |
| 5 | Gain | 53 | dB |
| 6 | Output stability | 1 | dB |
| 7 | Input stability | 0-10 | dB |
| 8 | Connector | N/ Female | |
| 9 | Output connector VSWR | ≤1.30 (No power and VNA test) | |
| 10 | Power supply wire | Red+Black+Enable wire | |
| 11 | Enable Control | High ON Low Off | |

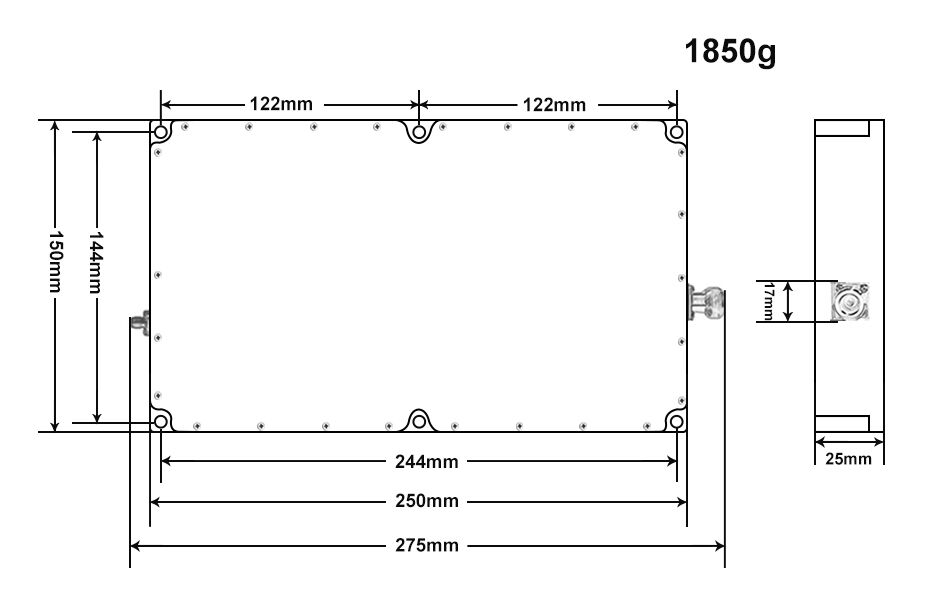

| 12 | Out shell Size | 250*150*25 | mm |
| 13 | Mount hole | 250*150 | mm |
| 14 | Weight | 1850 | g |
| 15 | Work Temperature | -40~+65 | ℃ |
| 16 | Out shell material | Aluminum | |
| 17 | Vibration need | Car load OK | |
The Texin Broadband Power Amplifier is essential for applications requiring high linearity, substantial gain, and reliable performance. It delivers exceptional amplification with 50dB gain and 100W wattage, making it ideal for robust signal boosting in telecommunications infrastructure, radar systems, satellite communication, and broadcasting equipment.
Its high linearity ensures minimal distortion, crucial for clear and accurate signal transmission in communication systems. The amplifier's compatibility with various power setups and durable construction makes it suitable for defense, aerospace, and field deployment applications.
