| 起源の場所: | 深Shenzhen China |
|---|---|
| ブランド名: | TeXin |
| 証明: | CE ISO |
| モデル番号: | TX検出器 |
| 最小注文数量: | 1 |
| 価格: | 交渉可能 |
| パッケージの詳細: | 耐久性のあるケース |
| 受渡し時間: | 10-15DAYS |
| 支払条件: | L/C、D/A、D/P、T/T、Western Union、MoneyGram |
| 供給の能力: | 100/月 |
| 名前: | 検出器 | 通常の検出範囲: | 5km |
|---|---|---|---|
| 検出周波数帯域: | 0.7-6.3GHz/ 2.4-2.5GHz/ 5.15-5.95GHz | 検出角: | 360° |
| 検出距離: | ＞2km（ofdm）＞4km（fpv 5.8g/2W） | 電源: | DC 4.75 ~ 36V |
| 保護グレード: | IP65 | 作業温度: | 40〜 +70℃ |
| ハイライト: | long range drone detector,outdoor drone signal detector,360 degree FPV drone detector |
||

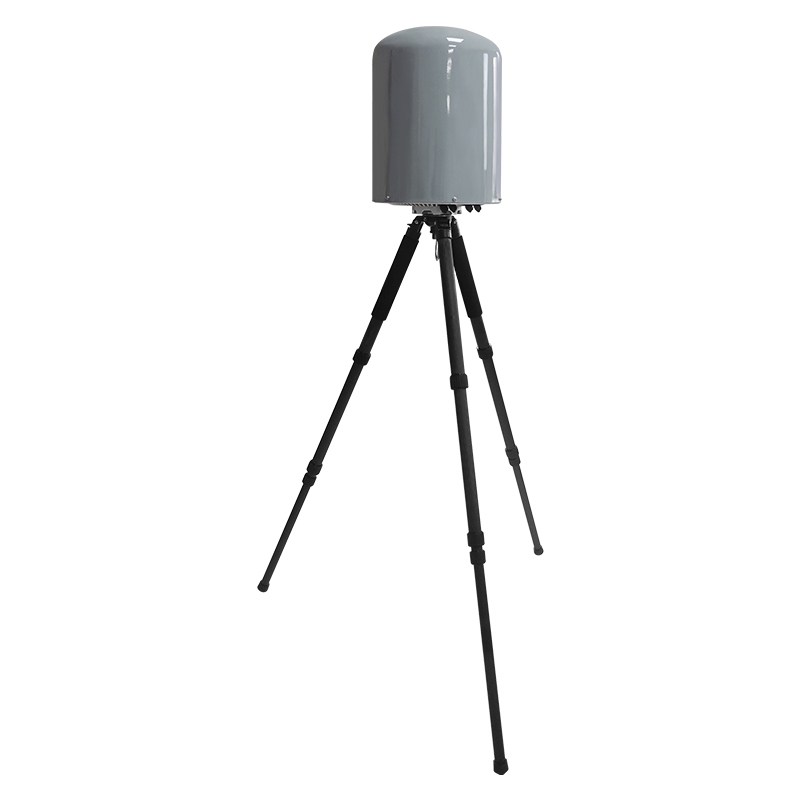

This detector boasts an impressive 5km detection range—far exceeding standard consumer-grade detectors. Whether in open fields, industrial complexes, or large event venues, it can identify approaching drones at an early stage, providing ample time for security personnel to assess the situation, issue alerts, and take response measures.
Our detector addresses this by covering an extensive frequency spectrum of 700-6300MHz—a range that encompasses most common drone communication and control bands. This product features 360° omni-directional detection capability. Its specially designed antenna array ensures uniform signal reception across all angles.
| Regular detection range | 5km (Good radio environment) |
|---|---|
| Detection frequency bands | 0.7-6.3GHz/ 2.4-2.5GHz/5.15-5.95GHz |
| Identify Type | FPV Simulation Image Transmission OFDM HD Image Transmission |
| Detection angle | 360° |
| Sensitivity | Better than -96dBm (FPV signal Bw=6MHz) Better than -90dBm (OFDM signal Bw=20MHz) |
| Detection distance | ＞2km (OFDM) ＞4km (FPV 5.8G/2W) (The measured reliable distance when using a 2dBi gain receiving antenna. The actual antenna gain increases by 6dB, and the detection distance can be doubled.) |
| UART Parameters | 115.2kbps/TTL3~5V compatible |
| Power supply | DC 4.75 ~36V |
| Power consumption | ＜3.5W |
| Weight | 13.2kg |
| Volume | 470mm x 352mm |
| Protection grade | IP65 |
| Working temp | -40 ~ +70℃ |
