| 起源の場所: | 中国 |
|---|---|
| ブランド名: | TeXin |
| 証明: | SGS,ISO9001 |
| モデル番号: | TX-CD100W |
| 最小注文数量: | 1 |
| 価格: | 交渉可能 |
| パッケージの詳細: | 耐久の場合か箱 |
| 受渡し時間: | 3-5日 |
| 支払条件: | L/C、D/A、D/P、T/T、Western Union、MoneyGram |
| 供給の能力: | 50,00PCS/Month |
| 頻度: | 2000-7200MHz(カスタマイズ) | テスト電圧: | 28-32V |
|---|---|---|---|
| 現在: | 9A | 出力: | 100W |
| 得: | 53 dBm | 出力安定性: | 1db |
| コネクタ: | 女性 | 外殻 サイズ: | 220×110×26ミリ |
| 重さ: | 1316g | 作業温度: | -40~+65 |
| シェル素材を出します: | アルミニウム | 応用: | ドローン・ジャマー |
| ハイライト: | RF amplifier module 100W,drone jammer power amplifier,Ultra band amplifier 2000-7200MHz |
||
Professional Ultra band 2000-7200mhz 100W power amplifier module designed by Texin, it is ultra band range 2000-7200mhz in one module. Users can install it by themselves to interfere with drones in the range from a distance, and the band 2000-7200mhz 100W power amplifier module supports customization.
The wide band power amplifier jammer module can be applied in areas with high requirements for low-altitude safety, such as airports, military restricted areas, large-scale event venues, chemical parks, and nuclear power plants. For example, at airports, it can prevent drones from entering no-fly zones, ensuring the normal takeoff and landing of flights; at large event venues, it can prevent illegal drone filming, maintaining safety and order at events.
| Description | Symbol | Min | Typ | Max | Unit | Remark |
|---|---|---|---|---|---|---|
| Operating Frequency | BW | 2000 | 7200 | MHz | ||
| Input Power | Pin | 0 | dBm | |||
| Output Power CW | Psat | 47 | 48 | 49.5 | dBm | Continuous Wave |
| Power Gain | Gp | 48 | dBm | @ Pin=0 dBm | ||
| Power Gain Flatness | △Gp | ±1.5 | dB | @ Pin=0 dBm | ||
| Input Return Loss | S11 | -15 | dB | |||
| Operating Voltage | Vdc | 28 | 28 | 36 | V | |
| Current Consumption | A | 7 | 9 | A | @ Pout=50~85W | |

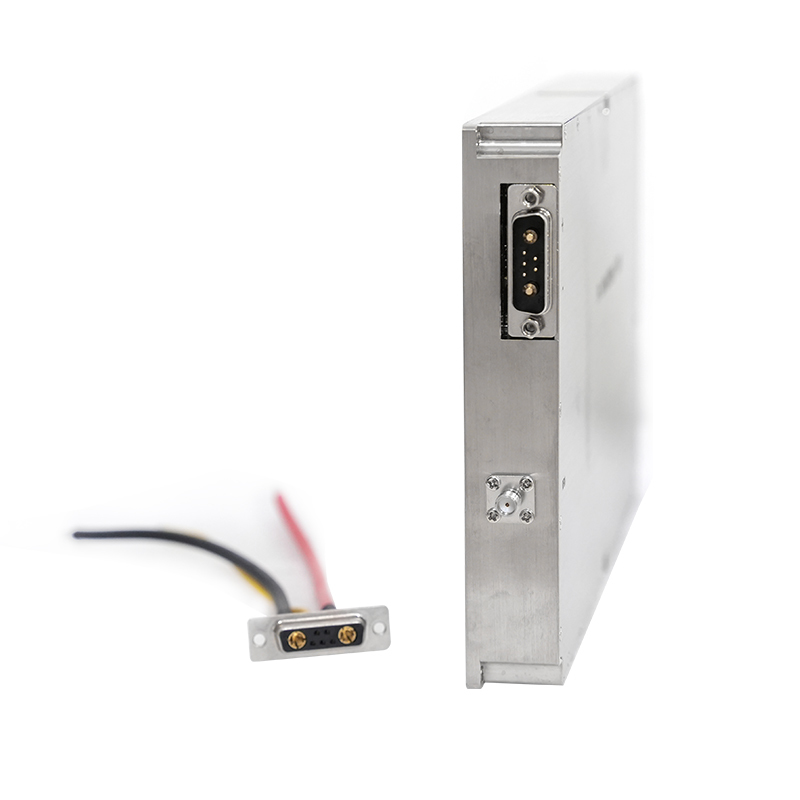

| RF Connector Input | SMA, Female | |||||
| RF Connector Output | SMA, Female | |||||
| Max Input Power | PinMax | ≤10 dBm | ||||
| Interface Definition | VDD | A1: 28Vdc | ||||
| GND | A2: Ground | |||||
| Enable | 1: 5V~Vdd:ON 0V:OFF | |||||
